德国IVO编码器
德国IVO一直致力于工业自动化与过程控制产品的研制，在精度、可靠性、稳定性、产品的多样性以及有效需求上满足客户要求。在自动化传感器行业有雄厚的基础和地位，产品种类很多，领*精密传感器制造的潮流。

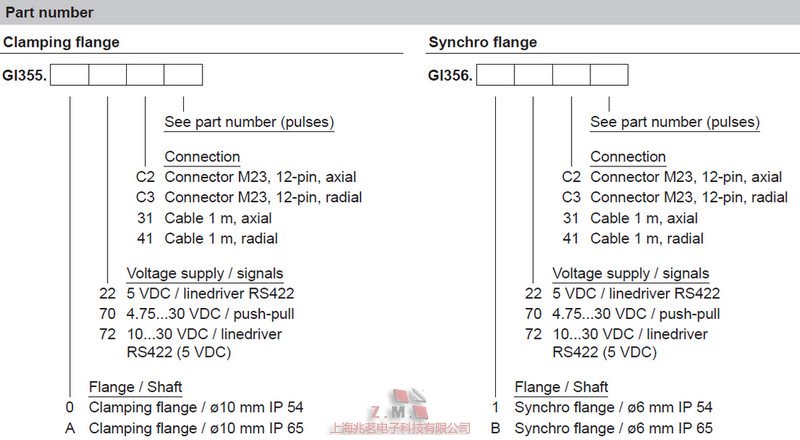

IVO编码器 GI355 - GI356
特征：
- 带轴ø10mm或ø6mm的编码器
- 分辨率max. 6000 ppr
- 光学传感器
- 夹紧或同步法兰
- 工业标准
- 高转速max.10000 rpm
- 信号输出A, A inv., B, B inv., N, N inv
- 温度范围为5 VDC至100°C
可选
- 不锈钢设计GE355
- ATEX批准
- 防腐蚀保护
配件
- 连接器和电缆
- Z 141.001 Female connector M23, 12-pin, less cable
- Z 141.003 Female connector M23, 12-pin, 2 m cable
- Z 141.005 Female connector M23, 12-pin, 5 m
- Z 141.007 Female connector M23, 12-pin, 10 m cable
- GI355安装附件
- Z 119.013 Adaptor plate for clamping flange for modification into synchro flange
- Z 119.017 Mounting angle for clamping flange (M3)
- Z 119.025 Adaptor plate for clamping flange, mounting by eccentric fixings (order separately)
- GI356安装附件
- Z 119.006 Eccentric fixing, single
- Z 119.015 Mounting adaptor for synchro flange
- Z 119.035 Bearing flange for encoders with synchro flange
| IVO编码器 GI355 - GI356 | |
| Operating voltage | 5 VDC ±10 * |
| 10...30 VDC | |
| 4.75...30 VDC | |
| with reverse voltage protection | |
| Current consumption | Max. 30 mA (w/o load), at 24 VDC |
| Max. 60 mA (w/o load), at 5 VDC | |
| Limit frequency | 150 kHz |
| Output signals | Channel A, B, N + inverted |
| Output stages | |
| 5 VDC | Line driver to RS422 |
| 10...30 VDC | Push-pull output, short-circuitproof or line driver to RS422 |
| 4.75...30 VDC | Push-pull outp., short-circuit-proof |
| Speed | Max. 10000 rpm |
| Start-up torque | |
| without sealing (IP54) | < 0.010 Nm |
| with sealing (IP65) | < 0.015 Nm |
| Shaft loading | |
| axial | < 20 N |
| radial | < 40 N |
| Moment of inertia | 1.45 x 10-6 kgm2 |
| Housing material | Aluminium |
| Weight | Approx. 250 g |
| Operating temperature | -20...+100 °C at 5 VDC |
| -20...+85 °C at 10...30 VDC | |
| -20...+85 °C at 4.75...30 VDC | |
| Protection type | |
| Shaft without sealing | IP 54 |
| Shaft with sealing | IP 65 |
| Humidity | Max. relative humidity 95 *, non-condensing |
| Resistance | |
| Vibration | DIN EN 60068-2-6 |
| <100 m/s2, 16-2000 Hz | |
| Shock | DIN EN 60068-2-27 |
| <1000 m/s2, 4 ms | |
| Interference resistance | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-4 |
